Stone & travertine villa

Cascade: 3-bedroom luxury modern villa plan

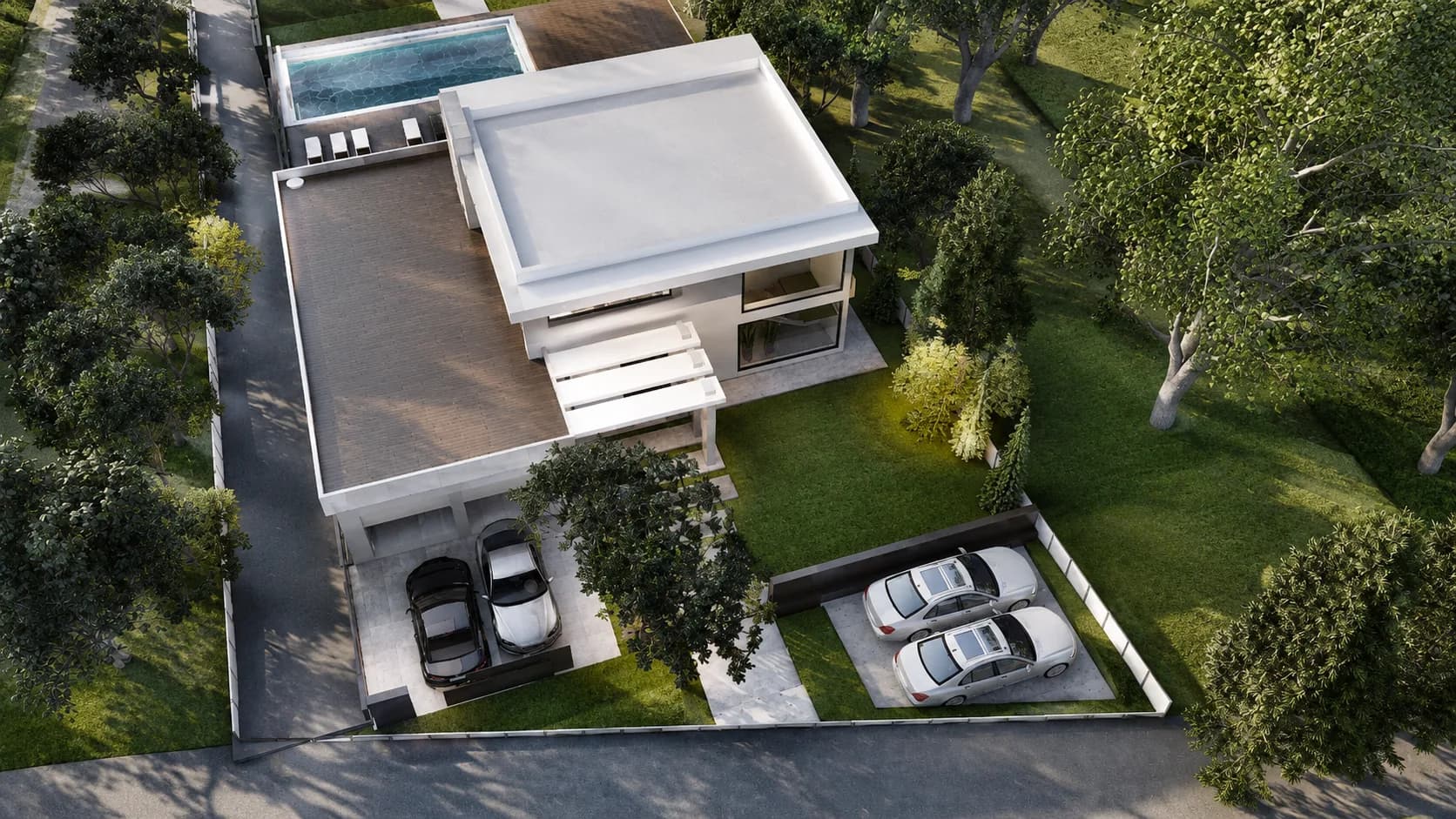

Two flat-roofed levels facing downhill, toward the terrace and pool

View the floor plans

Study Set $149, Complete Set $1,195

Prices in US dollars.

Check Cascade against your lot and get a builder’s price with the Study Set. Its price counts in full toward the Complete or Studio Set within 12 months, and nothing is charged when you order.

Would this layout work for your family? Discuss Cascade with Jovan or WhatsApp us.

Cascade at a glance

  • 307 m²Design area, 3,305 ft²
  • 3Bedrooms
  • 2Bathrooms
  • 2Levels
Units

The design

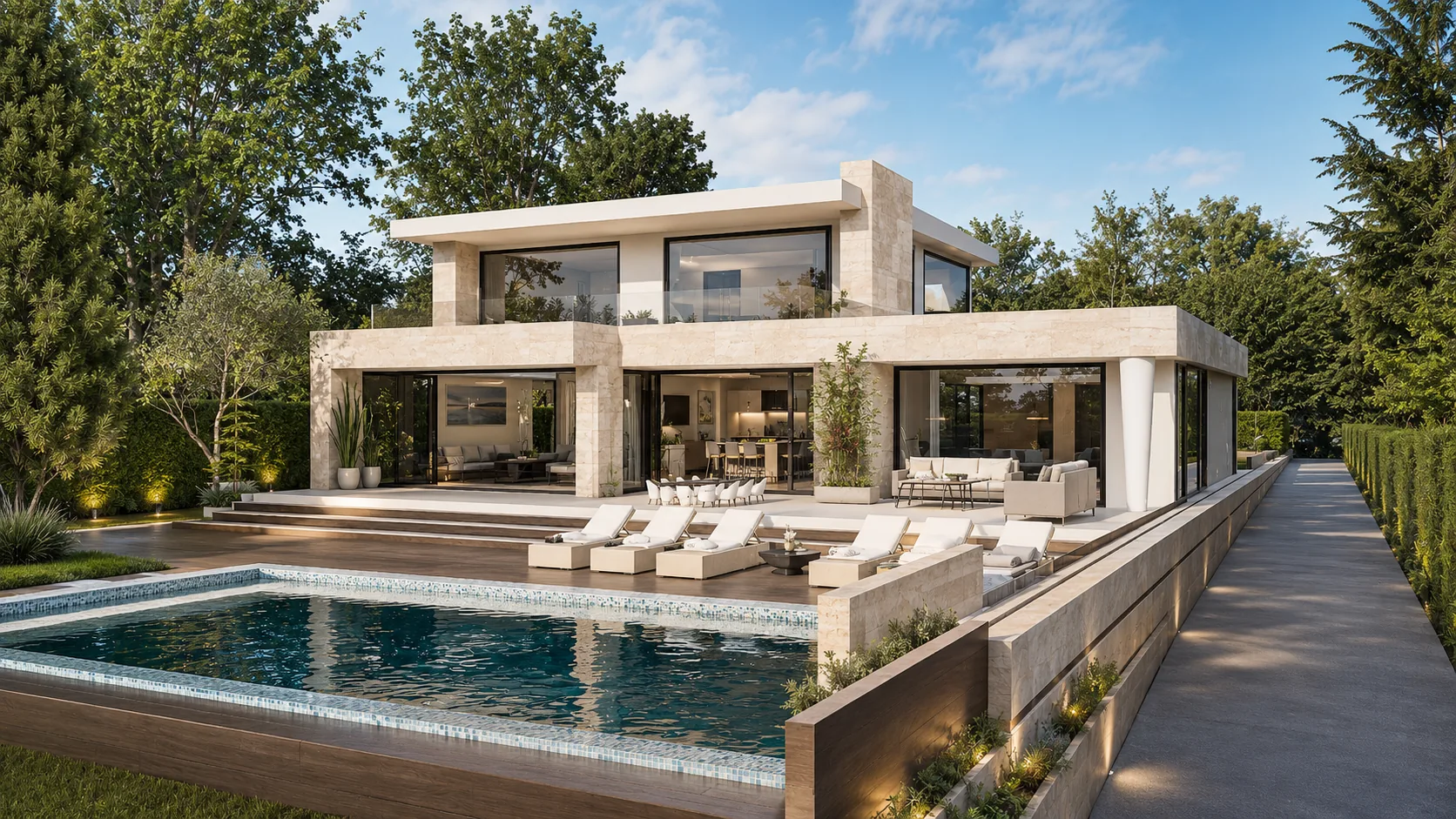

Roof slabs reach out past the glass, and stone-faced walls step the garden down to the pool in wide terraces.

Cascade rendering: open-plan living area with a long timber dining table, a kitchen with a stone island and a sofa, looking out through a glass wall to the terrace and pool

Cascade is drawn for ground that falls away. Two flat-roofed volumes sit one above the other, their slabs reaching out past the glass, and the whole house faces downhill toward a terrace, a pool and the view beyond.

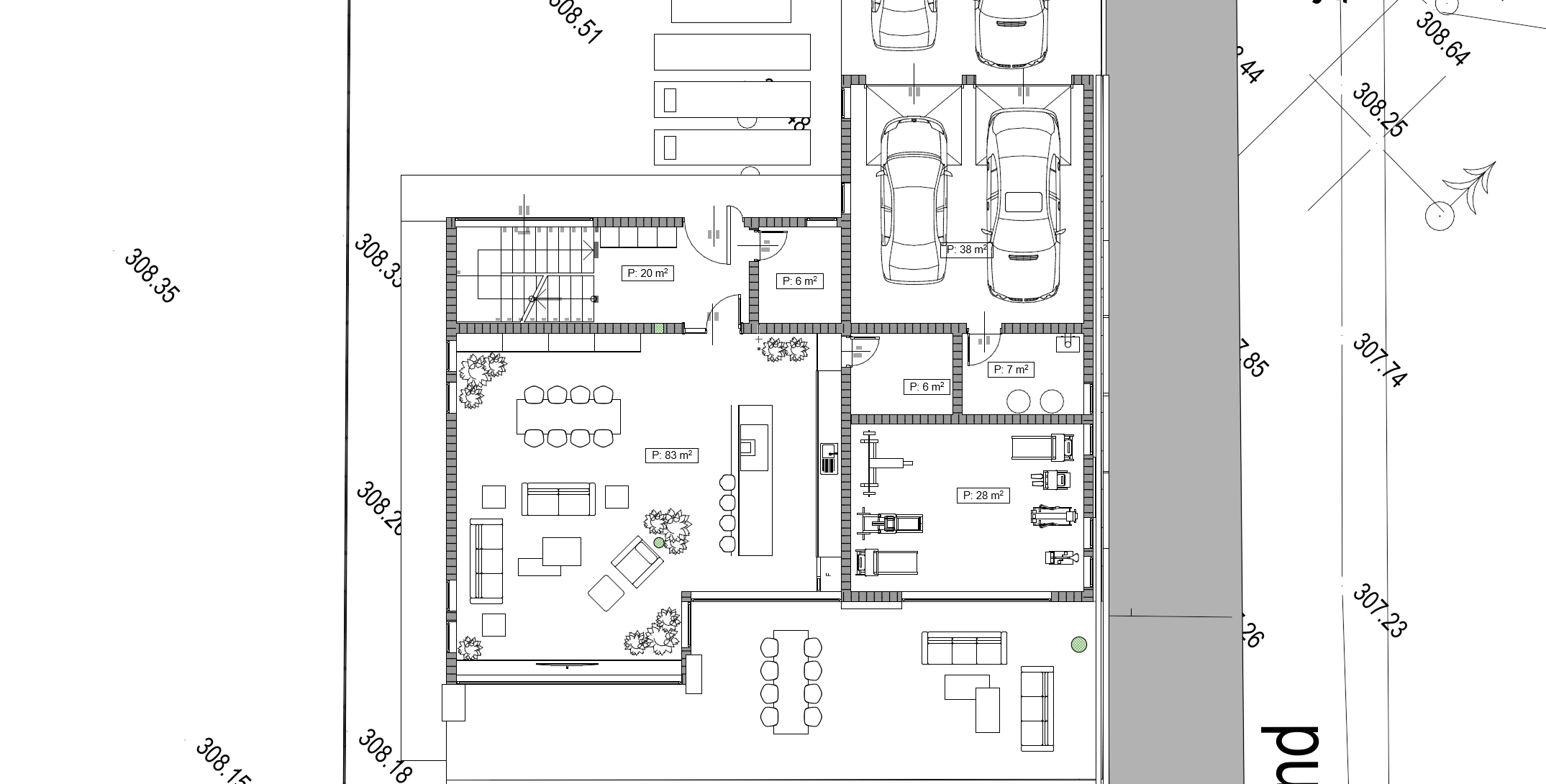

On the main level, one room of 83 m² (893 ft²) gathers living, dining and a kitchen with a stone island under a 3.30 m (10 ft 10 in) ceiling. Sliding glass walls open it to a covered terrace, so summer meals move outside without rearranging anything. Behind the kitchen is a daylit home gym of 28 m² (301 ft²), with a sauna and a bathroom beside it, a short walk from the pool for an evening swim. A two-car garage and a mechanical room complete the level.

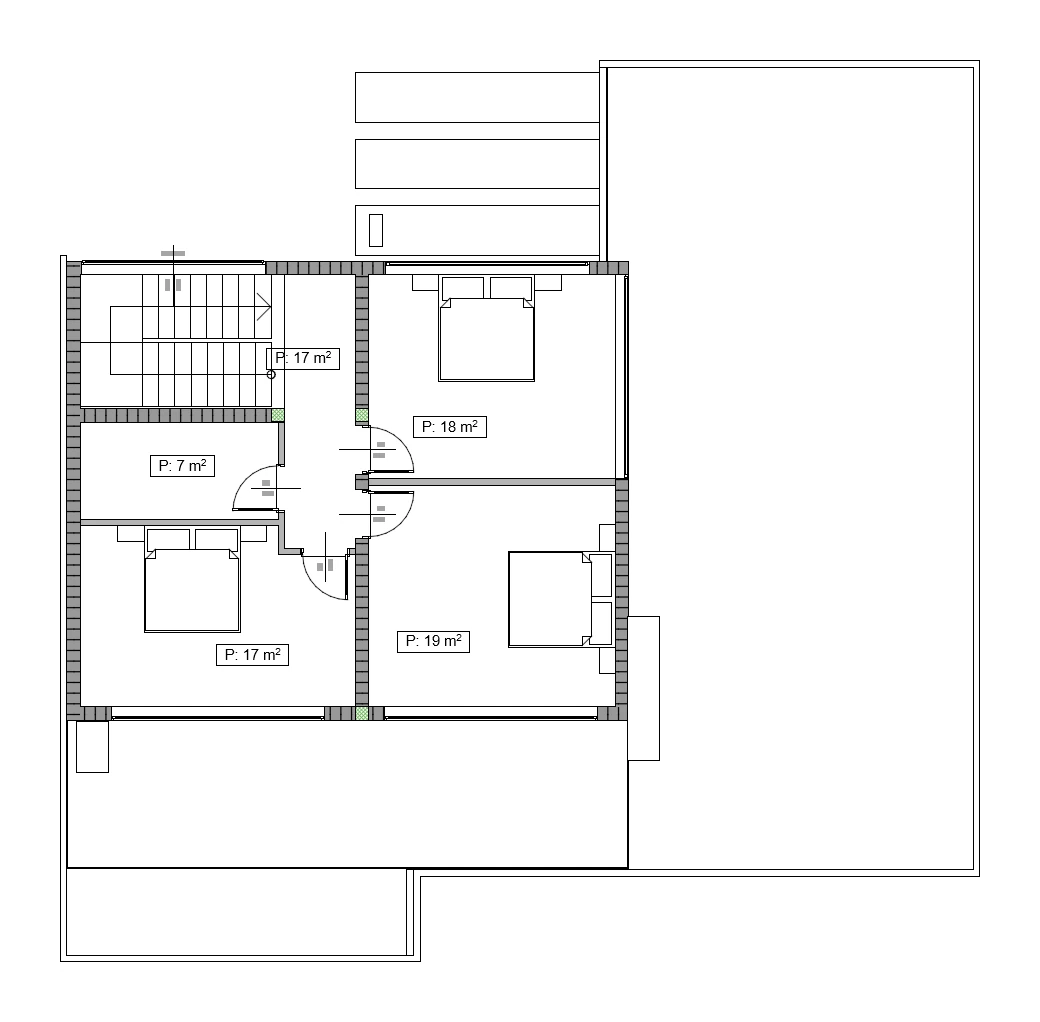

Upstairs is the quiet floor. Three bedrooms of 17 to 19 m² (183 to 205 ft²) share a bathroom and a stair hall, and the roof of the lower volume becomes a 38 m² (409 ft²) terrace behind a glass balustrade, looking over the pool.

In the renderings, the walls read as warm stone, the glazing has dark frames, and stone-faced retaining walls carry the garden down the hill in wide terraces. For a villa raised on a plateau above the street instead, with its pool beside the living room, see Belvedere.

Features

  • Two levels, 307 m² (3,305 ft²)
  • Living, dining and kitchen of 83 m² (893 ft²) with a stone island, under a 3.30 m (10 ft 10 in) ceiling
  • Sliding glass walls opening the living room to a covered terrace and the pool
  • Daylit home gym of 28 m² (301 ft²), with a sauna and a bathroom beside it
  • Three upper-level bedrooms of 17–19 m² (183–205 ft²) and a 38 m² (409 ft²) terrace
  • Attached two-car garage of about 38 m² (409 ft²), plus a mechanical room

Details

Cascade details
ParkingTwo-car garage
RoofFlat
FacadeWarm stone-toned cladding; large sliding glazing with dark frames; glass balustrades
HeatingRadiant floor heating on both levels; gas boiler

Floor plans

Select a drawing to see how the rooms connect.

Room schedule
Cascade room schedule
Roomm²ft²
Ground floor: Living, dining and kitchen83893
Ground floor: Entrance hall with staircase20215
Ground floor: Mechanical room665
Ground floor: Bathroom665
Ground floor: Sauna775
Ground floor: Home gym28301
Ground floor: Two-car garage38409
Upper floor: Stair hall17183
Upper floor: Bathroom775
Upper floor: Bedroom 117183
Upper floor: Bedroom 218194
Upper floor: Bedroom 319205
Upper floor: Terrace (outdoor)38409
Total of listed spaces3043,272

The table adds the labeled spaces on the drawings. Areas in ft² are rounded.

Before you order.

What to know about Cascade before you choose a set.

  • Will it fit your lot?

    If you have a lot in mind, share its dimensions or a map link with Jovan. He can help you see how the entrance, living spaces and garden of Cascade could fit. Still looking for land? Ask what to look for in a lot for this layout.

    Ask about your lot, free
  • What will it cost?

    Study Set $149, Complete Set $1,195, Studio Set $1,395, each a fixed price. Built in the US,its 3,305 sq ft come to about 508,000 US dollars before the lot, at the 2025 Census median of 153.65 US dollars per sq ft of finished space in new detached homes; a garage or terrace counted in that area costs less to build. Your builder prices it for your lot from the Study Set.

    Cost to build Cascade, region by region
  • What comes with the Complete Set?

    You receive dimensioned floor plans, a foundation layout, the roof plan, elevations, sections and a door and window schedule, labeled in English, as PDF and editable DWG files.

    View the Cascade layout
  • Can you change it?

    Yes. Tell us what would make the layout work better for you, whether that’s a quieter bedroom or an entrance closer to the kitchen. The Studio Set includes one round of changes, about 12 hours of design time.

    Ask for a change
  • What units are the drawings in?

    The drawings are metric and labeled in English, with every area in m² and ft². The UK, Ireland and Australia build in metric already; for the US and Canada, the DWG files switch to feet and inches in CAD.

    Building a plan from another country
  • What happens after you order?

    Nothing is charged when you order. We email your invoice in US dollars. Pay it by PayPal or bank transfer, and your drawings follow by email: PDF for the Study Set, PDF and editable DWG for the Complete and Studio Sets. For a Studio Set, we work through your changes with you before delivery.

    How ordering works

Choose your set.

Building it as drawn? Choose the Complete Set. Want changes first? The Studio Set. Still deciding? Start with the Study Set.

Compare all prices
  • PDF

    Study Set

    The full floor plans and renderings as a PDF, to check against your lot and get a builder’s price.

    $149

    Counts in full toward the same design’s Complete or Studio Set within 12 months.

    Review only

    • Design renderings and a one-page design overview
    • Metric floor plans with room names, areas and overall dimensions
    • Area table in m² and ft²
    • Elevations, a section and a roof plan where available for the design
  • Recommended · PDF + DWG

    Complete Set

    The set to build from: PDF drawings and editable DWG files, ready for your builder.

    $1,195

    Build one home

    • Everything in the Study Set, plus dimensioned plans, foundation layout, roof plan, elevations and sections
    • Door and window schedule; wall, floor and roof layers
    • Drawings labeled in English, with an area schedule and general notes
    • Metric PDF and editable DWG files to build one home
  • PDF + DWG

    Studio Set

    The Complete Set, plus one round of changes by our studio and up to 6 hours of Q&A over 12 months.

    $1,395

    $200 more than the Complete Set, for one round of changes and up to 6 hours of Q&A

    Build one home

    • Everything in the Complete Set
    • One round of changes by CAD ART studio before delivery: layout, openings and finishes (about 12 hours of design time)
    • Q&A with your architect or builder by email or video, up to 6 hours over 12 months
    • Reversed (mirror-image) plan on request

Not sure yet? Start with the Study Set. If you upgrade within 12 months, you pay only the difference: $1,046 for the Complete Set of Cascade, or $1,246 for the Studio Set.

Add-ons for Cascade: reversed (mirror-image) plan $79 (included in the Studio Set) · additional build license $249 · developer license (free fixed quote)

Jovan Milivojević, our lead designer, answers every request personally. Dijana Radusin, our technical coordinator, checks every set before it leaves the studio. Meet the team

Bigger changes in mind?

What would you like to keep about Cascade? Tell Jovan what you would change, and he can help you explore the options.

Designed by CAD ART studio

An architecture studio in Paraćin, Serbia.

A team with 33+ years of experience and more than 500 projects across Serbia, from family homes and villas to apartment buildings of up to 50,000 m² (about 538,000 ft²).

  • 500+Projects across Serbia
  • 33+Years of experience in the team
  • 15+Buildings built to the team’s designs

Questions about Cascade

How is Cascade laid out over its two levels?

The main level holds the open living, dining and kitchen zone, the home gym with its sauna and bathroom, a mechanical room and the two-car garage. The upper level has three bedrooms, a shared bathroom and a 38 m² (409 ft²) terrace over the pool.

What kind of lot was Cascade designed for?

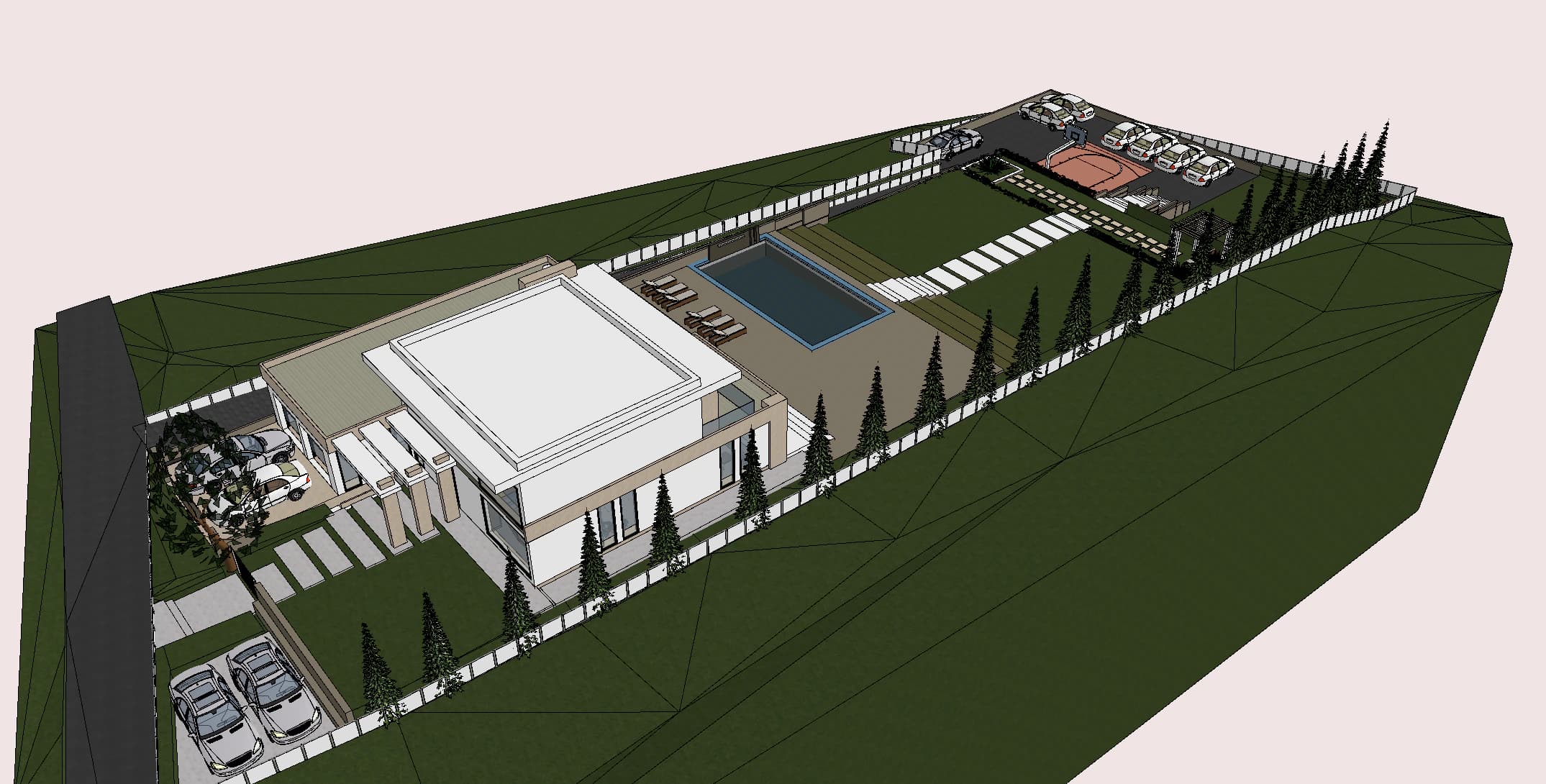

It was drawn for a sloping lot, with the house on the upper, street side and the garden stepping down in terraces.

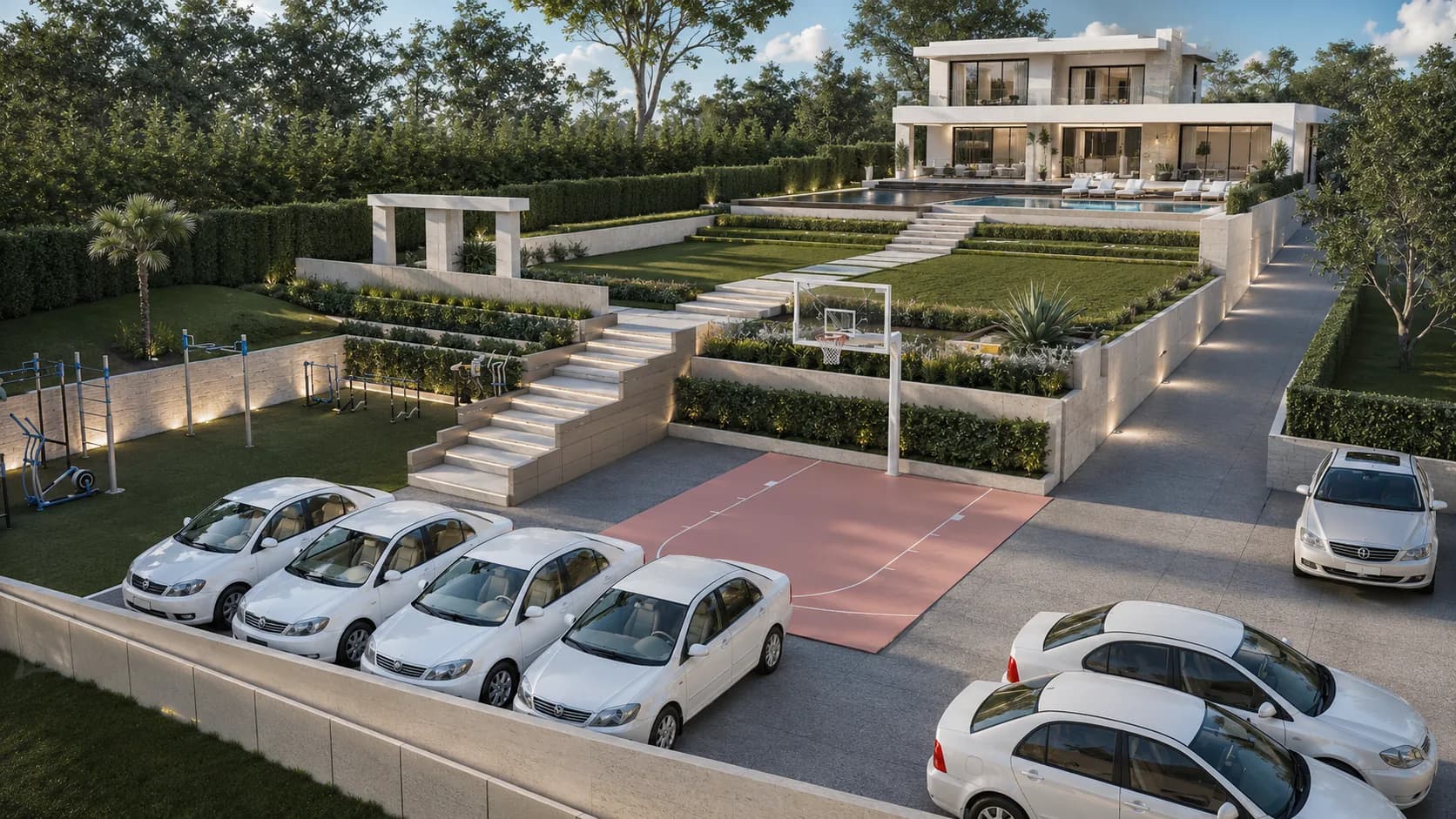

What do the renderings show around Cascade?

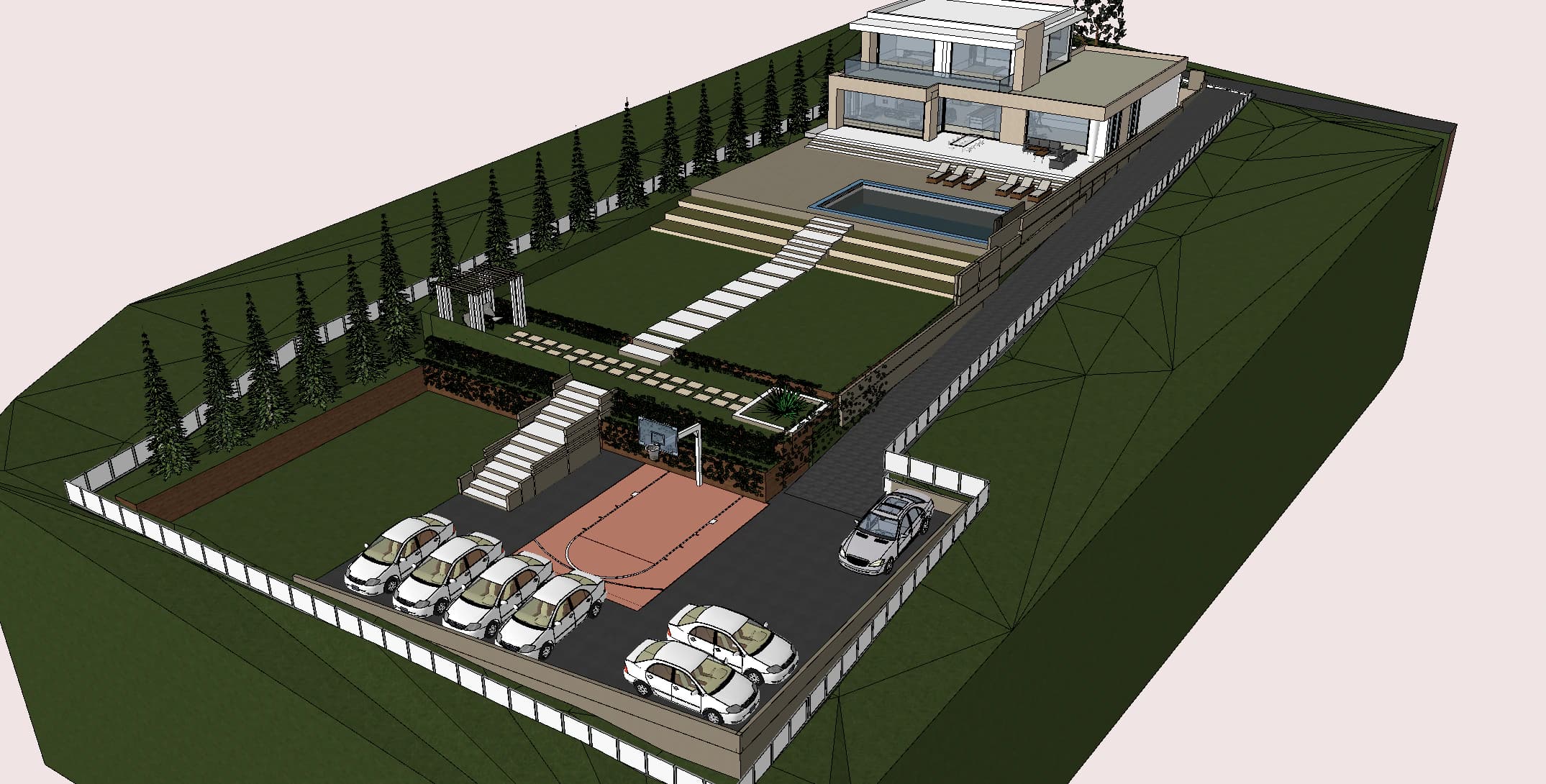

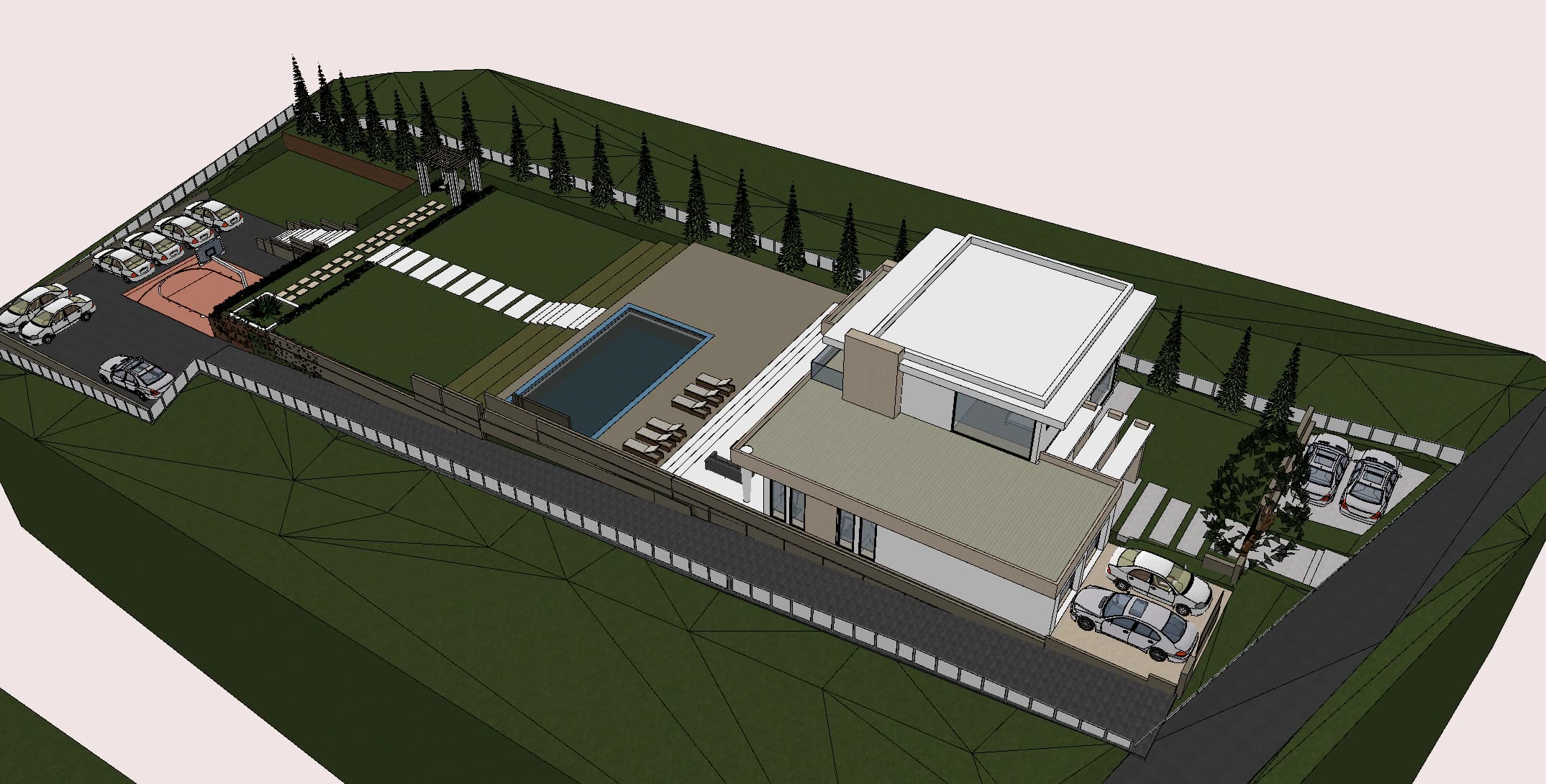

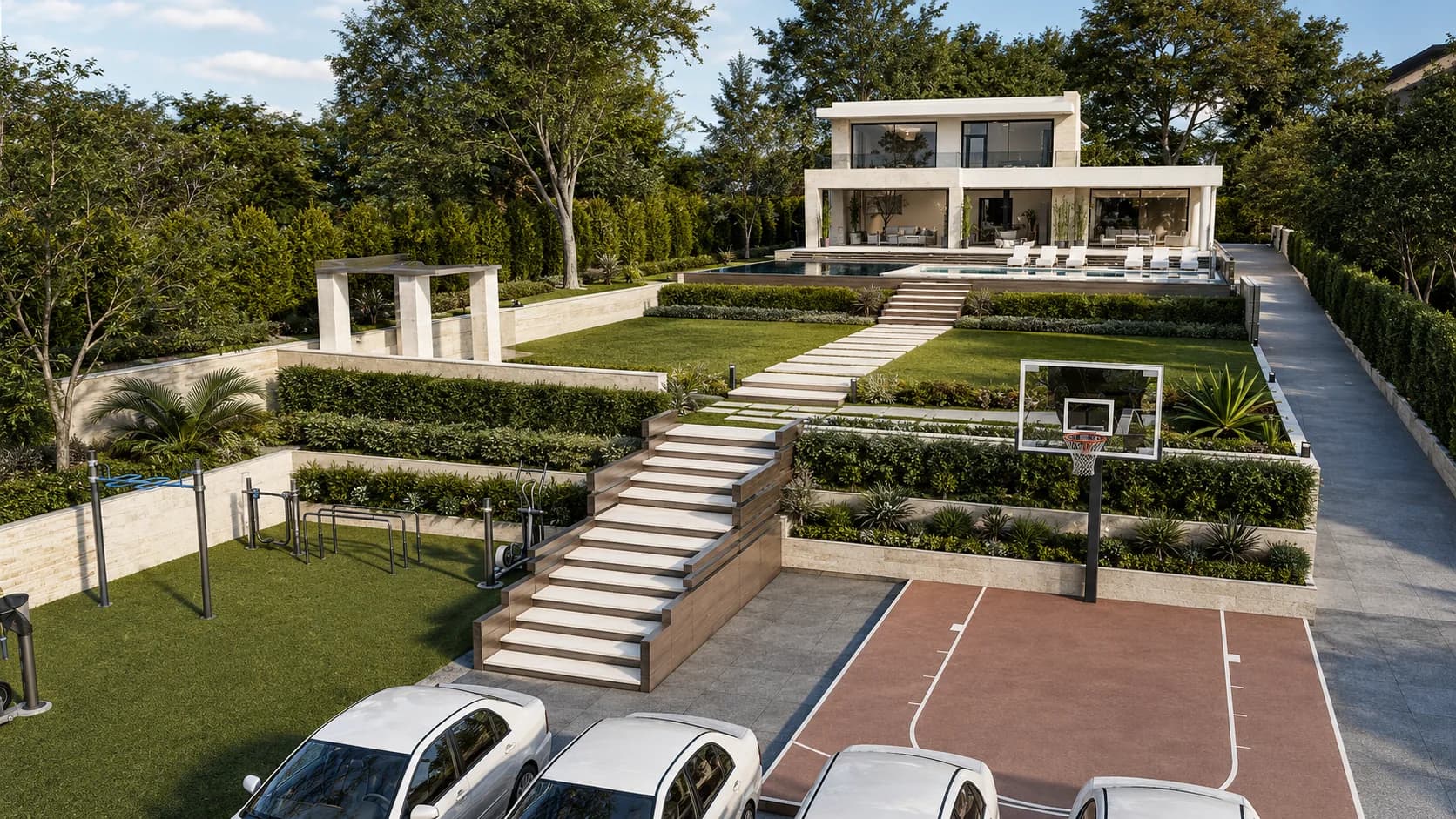

The landscaping: a pool off the living room, a garden that steps down the slope in planted terraces, and a lower terrace with a basketball court, an outdoor gym and parking.

How is Cascade heated?

Cascade is designed with radiant floor heating on both levels, supplied by a gas boiler.

Are the drawings metric?

Yes. The drawings are metric, and every area on this page is also given in ft². Complete and Studio Sets add editable DWG files.

Can the layout be changed?

Yes. The Studio Set includes one round of changes by CAD ART studio before delivery (about 12 hours of design time), such as moving openings or adjusting rooms. Larger changes get a free quote.

Can I get a mirrored version?

Yes. A mirror-image plan is included with the Studio Set on request, and it is also available as an add-on. Mirroring swaps the left and right sides. Tell us where the street and view are, and we can look at which version suits your lot.
