Flat-roof modern

Vela: 3-bedroom modern house plan with walkout basement

A floating roof, a wraparound terrace and a garage tucked below

Study Set $149, Complete Set $969

Prices in US dollars.

Check Vela against your lot and get a builder’s price with the Study Set. Its price counts in full toward the Complete or Studio Set within 12 months, and nothing is charged when you order.

Would this layout work for your family? Discuss Vela with Jovan or WhatsApp us.

Vela at a glance

  • 200 m²Design area, 2,153 ft²
  • 3Bedrooms
  • 1Bathrooms, plus a half bath
  • 1Level + walk-out lower level
Units

The design

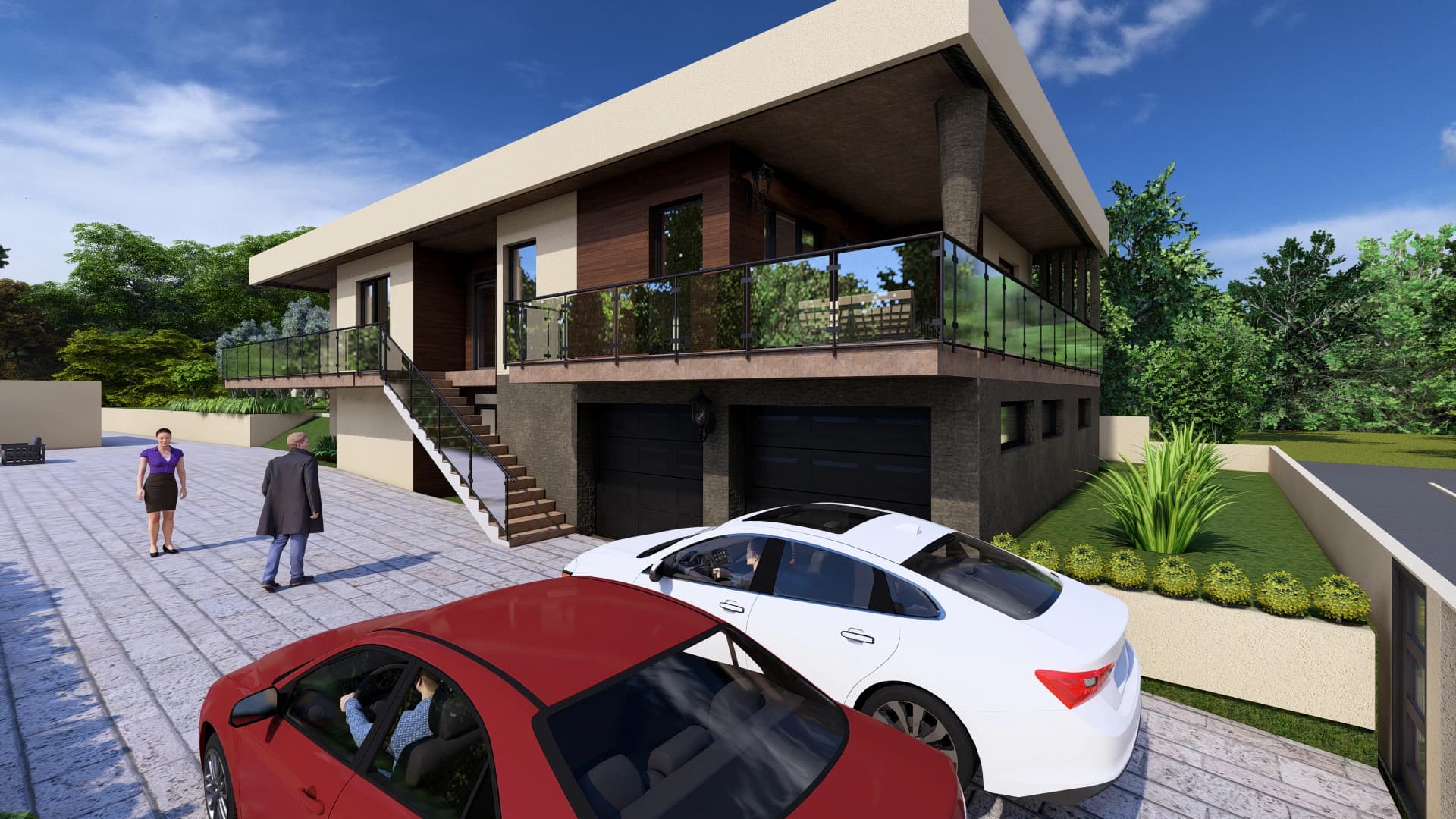

From the driveway you see two garage doors in a stone plinth; the house and its wraparound terrace sit on top.

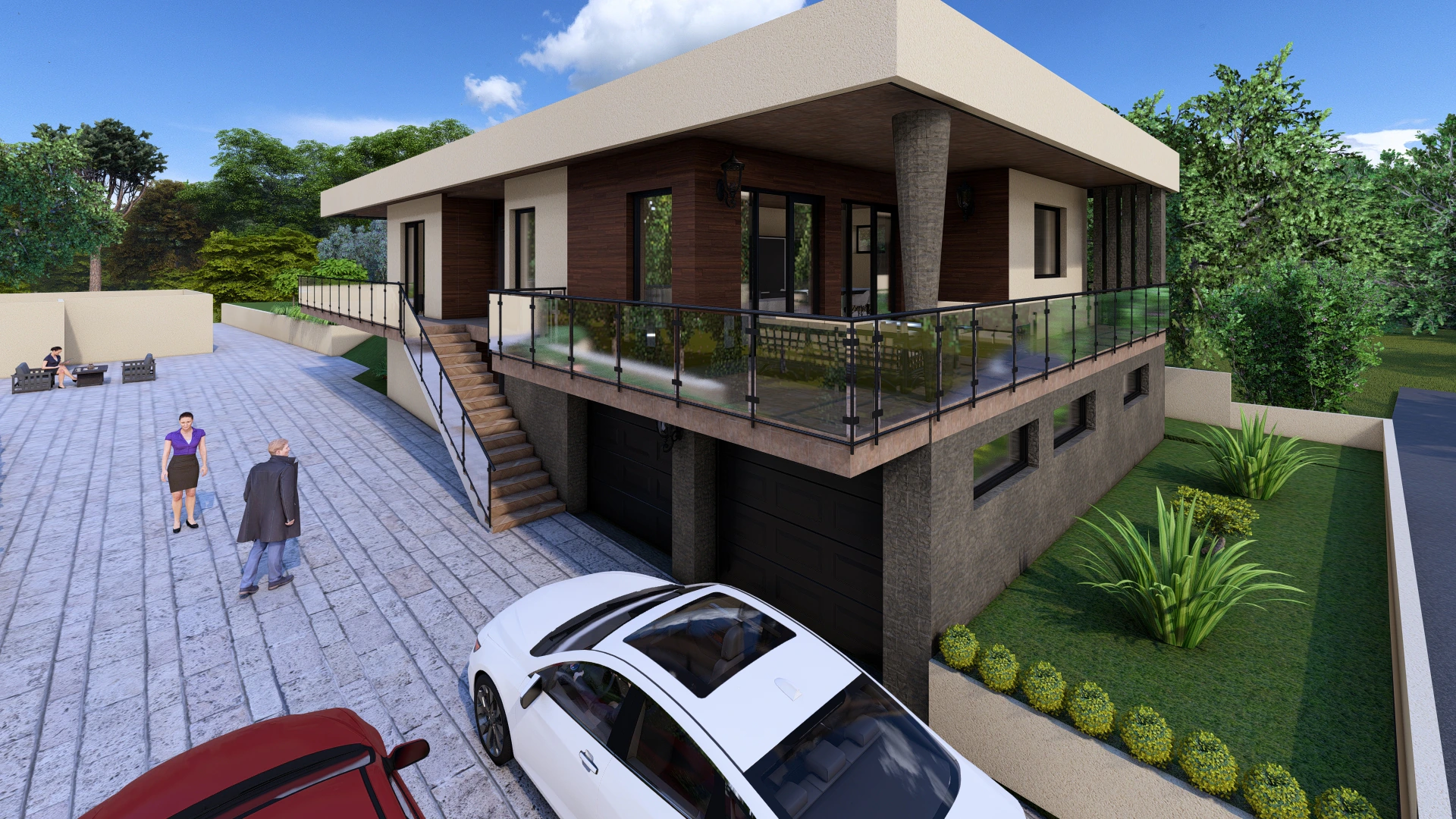

Vela rendering: the Vela house from its paved driveway, with the glass-railed terrace under the deep flat roof above the stone-clad garage level.

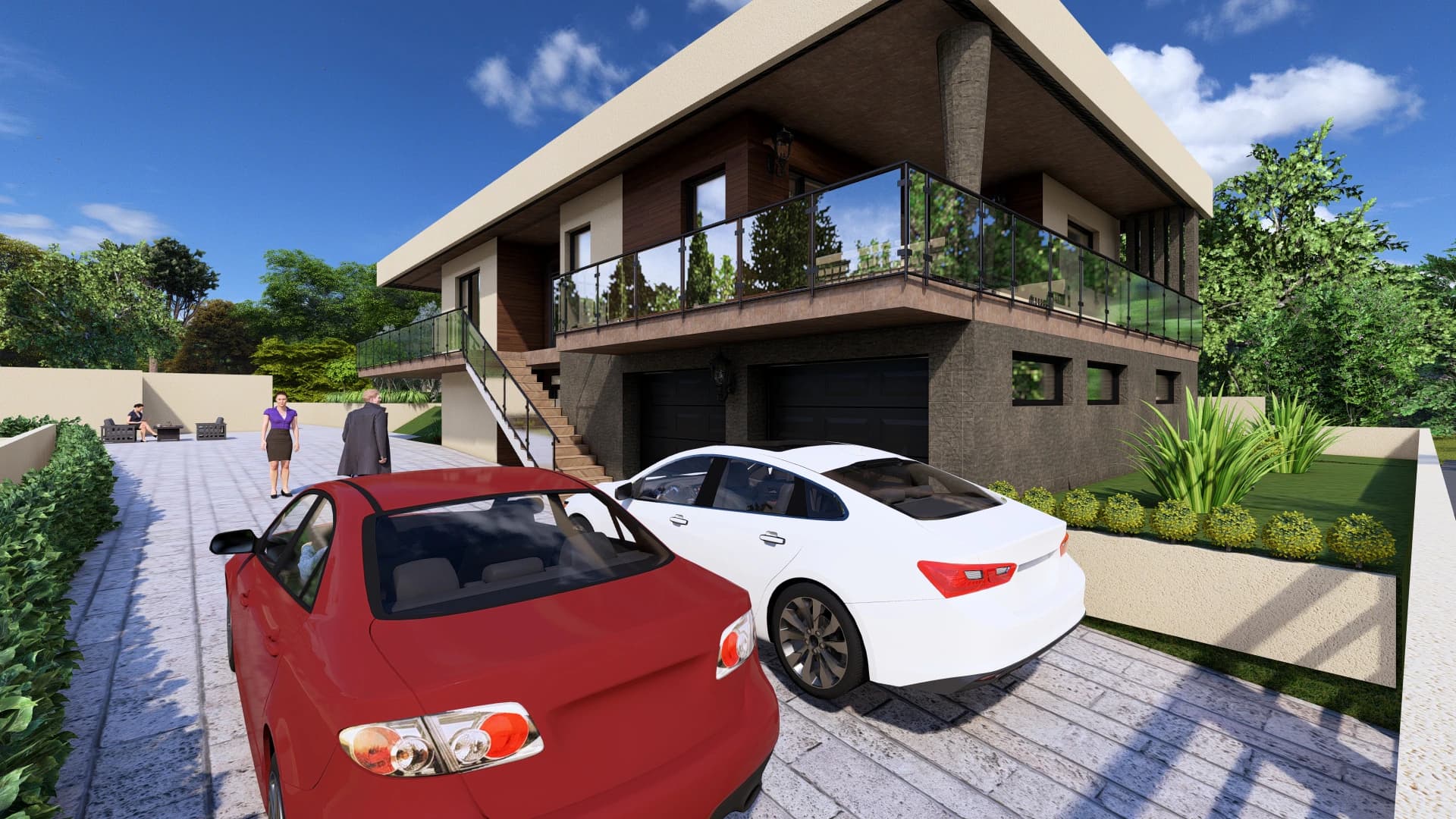

Vela, Italian for sail, is named after its roof: a deep, thin flat slab that seems to hover over the terrace. The house is designed for a sloping lot and puts the slope to work, with one living level over a walkout basement.

The lower level sits partly in the ground. The two-car garage, about 40 m² (431 ft²), opens at driveway height. Beside it are a multipurpose room of about 30 m² (323 ft²) for a home theater, a gym or a playroom, a mechanical room and storage. A stone-clad plinth wraps this level.

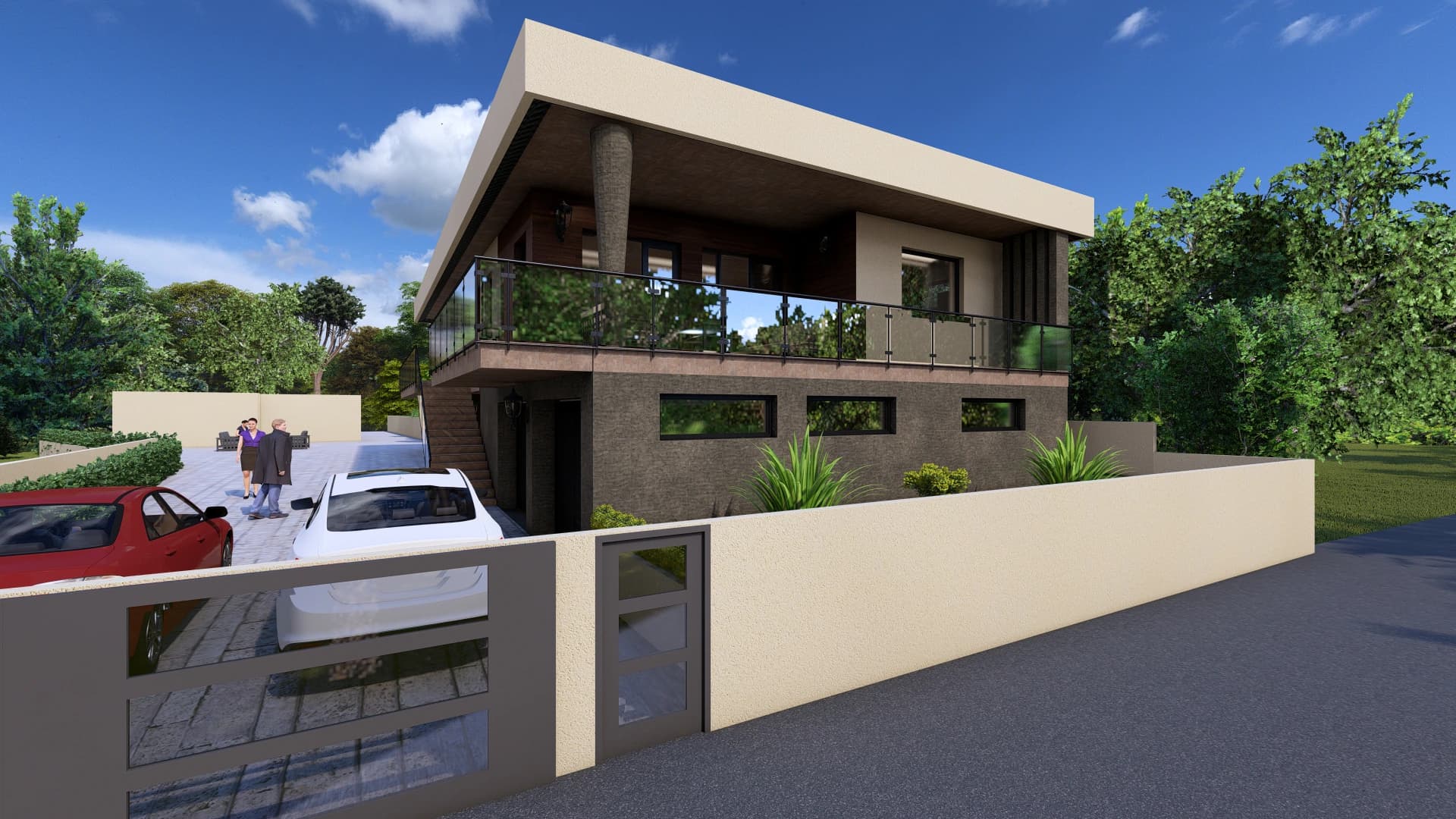

An outdoor stair leads up to the living level. The living and dining room, about 40 m² (431 ft²), steps out onto a terrace that wraps around the house behind a glass balustrade, under the deep overhang of the roof. The kitchen with its pantry and a study sit close by. Three bedrooms, a main bathroom and a half bath complete the floor, so every room you use daily is on one level.

Timber-look cladding and warm stucco sit above the stone. If you would rather have the bedrooms on a full upper floor, Linea uses the same design language over two stories.

Features

  • 200 m² (2,153 ft²): one living level over a walkout lower level
  • Two-car garage, a multipurpose room, a mechanical room and storage on the lower level
  • Open living and dining onto a wraparound terrace with glass balustrade
  • Three bedrooms, a study, a main bathroom and a half bath on the living level

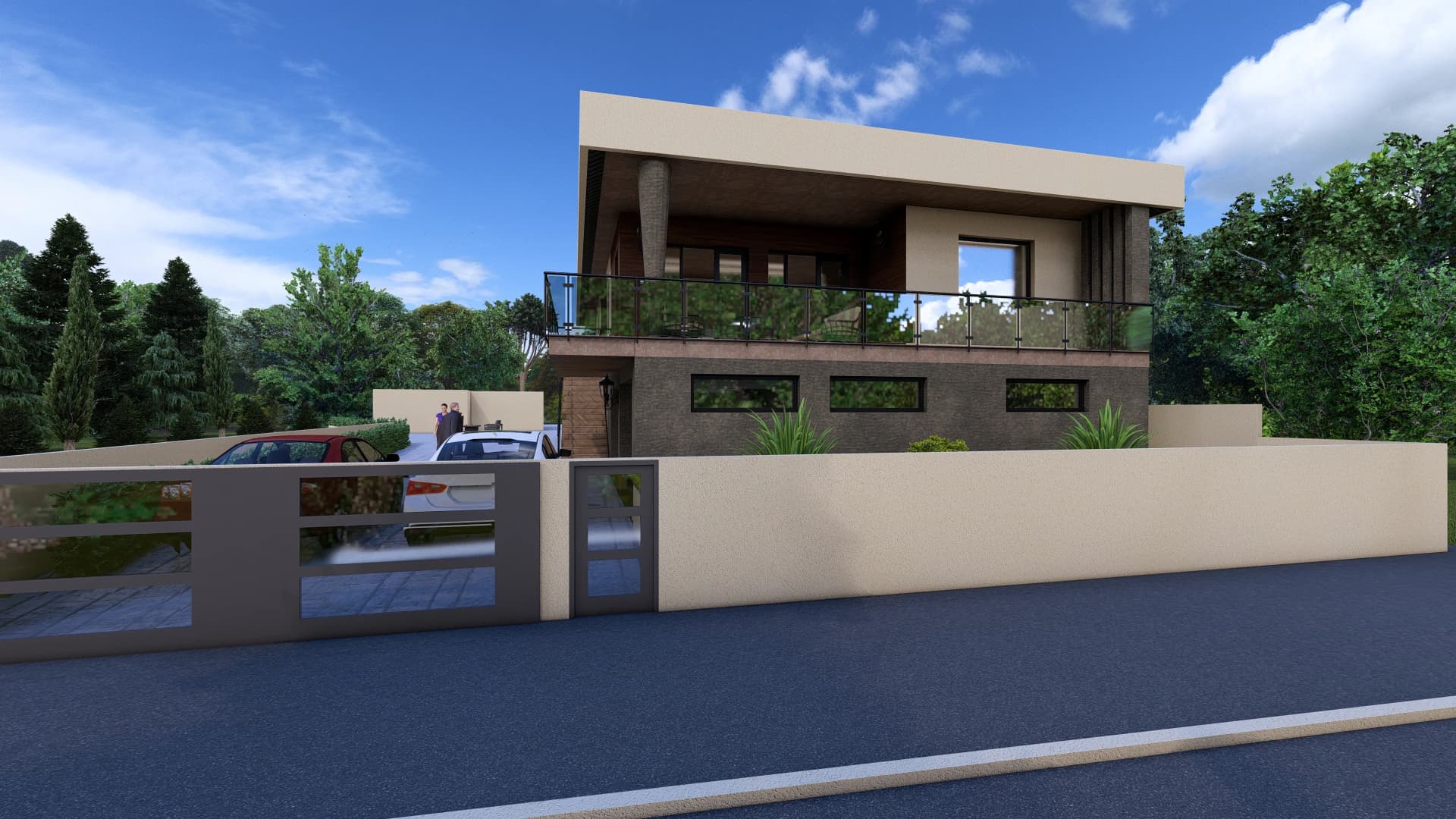

  • Stone-clad lower level beneath timber-look cladding and warm stucco
  • Deep flat-roof overhang shading the terrace

Details

Vela details
ParkingTwo-car garage
RoofFlat
FacadeNatural stone lower level; timber-look cladding; beige stucco; exposed concrete; black-framed glass balustrade
HeatingHeat pump with zoned radiant floor heating

Room schedule

Every room, with its area.

Vela room schedule
Roomm²ft²
Lower level: Two-car garage40431
Lower level: Multipurpose room30323
Lower level: Mechanical room15161
Lower level: Storage15161
Ground floor: Living and dining40431
Ground floor: Kitchen with pantry12129
Ground floor: Study10108
Total of listed spaces1621,744

The table adds the labeled spaces on the drawings. Areas in ft² are rounded.

Before you order.

What to know about Vela before you choose a set.

  • Will it fit your lot?

    If you have a lot in mind, share its dimensions or a map link with Jovan. He can help you see how the entrance, living spaces and garden of Vela could fit. Still looking for land? Ask what to look for in a lot for this layout.

    Ask about your lot, free
  • What will it cost?

    Study Set $149, Complete Set $969, Studio Set $1,095, each a fixed price. Built in the US,its 2,153 sq ft come to about 331,000 US dollars before the lot, at the 2025 Census median of 153.65 US dollars per sq ft of finished space in new detached homes; a garage or terrace counted in that area costs less to build. Your builder prices it for your lot from the Study Set.

    Cost to build Vela, region by region
  • What comes with the Complete Set?

    You receive dimensioned floor plans, a foundation layout, the roof plan, elevations, sections and a door and window schedule, labeled in English, as PDF and editable DWG files.

    See a drawing sample
  • Can you change it?

    Yes. Tell us what would make the layout work better for you, whether that’s a quieter bedroom or an entrance closer to the kitchen. The Studio Set includes one round of changes, about 12 hours of design time.

    Ask for a change
  • What units are the drawings in?

    The drawings are metric and labeled in English, with every area in m² and ft². The UK, Ireland and Australia build in metric already; for the US and Canada, the DWG files switch to feet and inches in CAD.

    Building a plan from another country
  • What happens after you order?

    Nothing is charged when you order. We email your invoice in US dollars. Pay it by PayPal or bank transfer, and your drawings follow by email: PDF for the Study Set, PDF and editable DWG for the Complete and Studio Sets. For a Studio Set, we work through your changes with you before delivery.

    How ordering works

Choose your set.

Building it as drawn? Choose the Complete Set. Want changes first? The Studio Set. Still deciding? Start with the Study Set.

Compare all prices
  • PDF

    Study Set

    The full floor plans and renderings as a PDF, to check against your lot and get a builder’s price.

    $149

    Counts in full toward the same design’s Complete or Studio Set within 12 months.

    Review only

    • Design renderings and a one-page design overview
    • Metric floor plans with room names, areas and overall dimensions
    • Area table in m² and ft²
    • Elevations, a section and a roof plan where available for the design
  • Recommended · PDF + DWG

    Complete Set

    The set to build from: PDF drawings and editable DWG files, ready for your builder.

    $969

    Build one home

    • Everything in the Study Set, plus dimensioned plans, foundation layout, roof plan, elevations and sections
    • Door and window schedule; wall, floor and roof layers
    • Drawings labeled in English, with an area schedule and general notes
    • Metric PDF and editable DWG files to build one home
  • PDF + DWG

    Studio Set

    The Complete Set, plus one round of changes by our studio and up to 6 hours of Q&A over 12 months.

    $1,095

    $126 more than the Complete Set, for one round of changes and up to 6 hours of Q&A

    Build one home

    • Everything in the Complete Set
    • One round of changes by CAD ART studio before delivery: layout, openings and finishes (about 12 hours of design time)
    • Q&A with your architect or builder by email or video, up to 6 hours over 12 months
    • Reversed (mirror-image) plan on request

Not sure yet? Start with the Study Set. If you upgrade within 12 months, you pay only the difference: $820 for the Complete Set of Vela, or $946 for the Studio Set.

Add-ons for Vela: reversed (mirror-image) plan $49 (included in the Studio Set) · additional build license $119 · developer license (free fixed quote)

Jovan Milivojević, our lead designer, answers every request personally. Dijana Radusin, our technical coordinator, checks every set before it leaves the studio. Meet the team

Bigger changes in mind?

What would you like to keep about Vela? Tell Jovan what you would change, and he can help you explore the options.

Designed by CAD ART studio

An architecture studio in Paraćin, Serbia.

A team with 33+ years of experience and more than 500 projects across Serbia, from family homes and villas to apartment buildings of up to 50,000 m² (about 538,000 ft²).

  • 500+Projects across Serbia
  • 33+Years of experience in the team
  • 15+Buildings built to the team’s designs

Questions about Vela

Is Vela a one-story house?

Daily living happens on one level: living and dining, kitchen, study, three bedrooms, a main bathroom and a half bath. Below it, a walkout lower level holds the two-car garage, a multipurpose room, a mechanical room and storage.

What kind of lot does Vela suit?

Vela is designed for a sloping lot, with the lower level partly below grade and the garage opening at driveway level. The Study Set gives its overall dimensions. You can also send us any lot details or photos, and we can help you explore how the design could fit.

Where can I see Vela's full floor plans?

The Study Set ($149) holds the full floor plans, and its price counts in full toward the Complete or Studio Set within 12 months.

How is Vela different from Linea?

Both share flat roofs, timber-look cladding and a design area of 200 m² (2,153 ft²). Vela keeps daily living on one level above a walkout garage level, while Linea places its bedrooms on a full upper floor.

How is Vela heated?

Vela is designed with a heat pump and zoned radiant floor heating.

Are the drawings metric?

Yes. The drawings are metric, and every area on this page is also given in ft². Complete and Studio Sets add editable DWG files.

Can Vela be changed or mirrored?

Yes. The Studio Set includes one round of changes before delivery (about 12 hours of design time), such as reshaping the multipurpose room, and a mirror-image plan on request. Mirroring swaps the left and right sides. If the slope changes from front to back, we can review where the garage and entrance would meet the ground. Larger changes get a free quote.
