Flat-roof modern

Oasis: 3-bedroom modern house plan with a two-car garage

A white box on dark stone, with a shaded terrace along the garden

View the floor plans

Study Set $149, Complete Set $1,095

Prices in US dollars.

Check Oasis against your lot and get a builder’s price with the Study Set. Its price counts in full toward the Complete or Studio Set within 12 months, and nothing is charged when you order.

Would this layout work for your family? Discuss Oasis with Jovan or WhatsApp us.

Oasis at a glance

  • 212 m²Design area, 2,282 ft²
  • 3Bedrooms
  • 1Bathrooms, plus a half bath
  • 2Levels
Units

The design

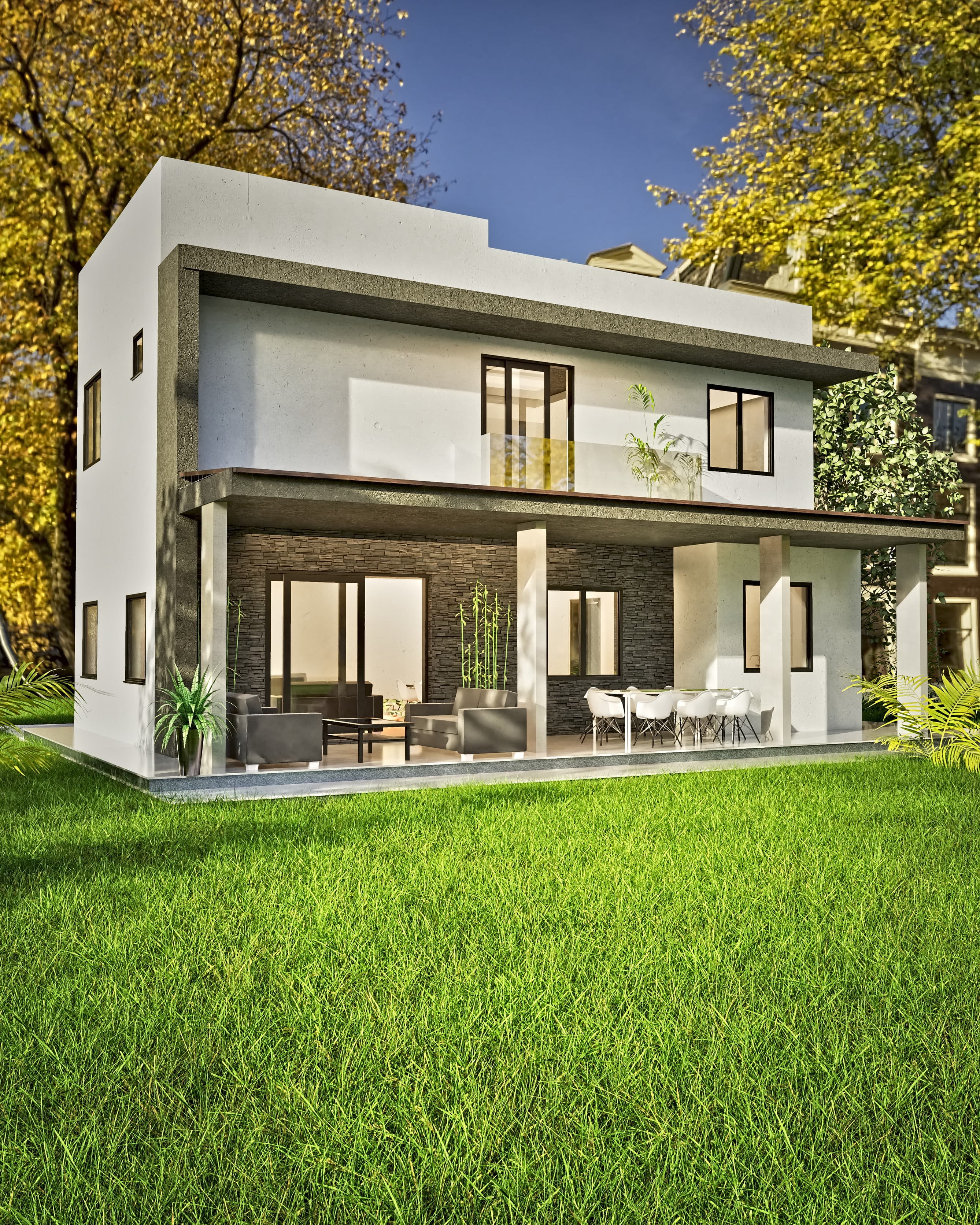

Under the white upper floor, a covered terrace of 26.76 m² (288 ft²) runs the length of the living room, deep enough for lunch in the rain.

Oasis rendering: the house at dusk from the street corner, with lit windows, a light under the entrance canopy and a street lamp beside the brick path

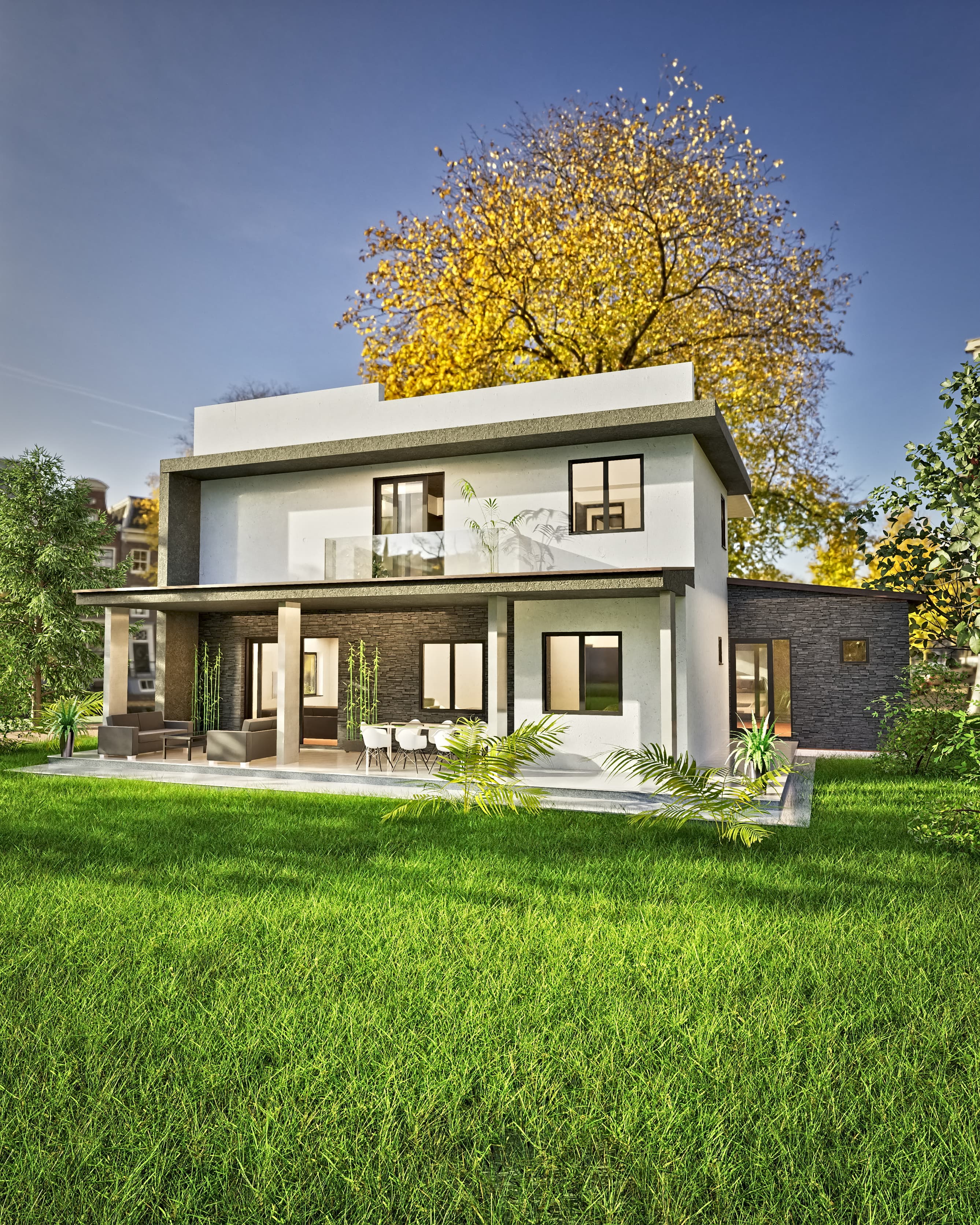

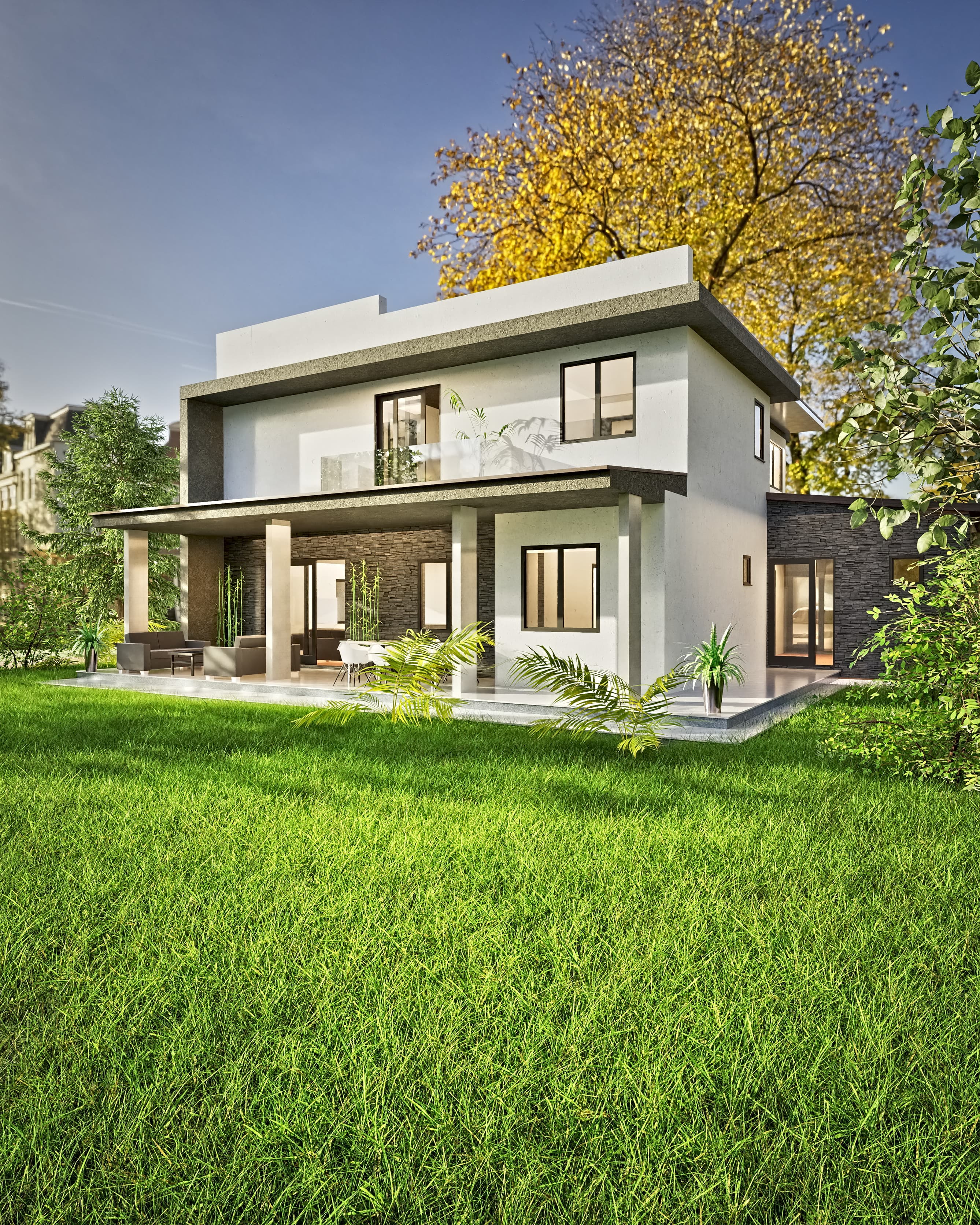

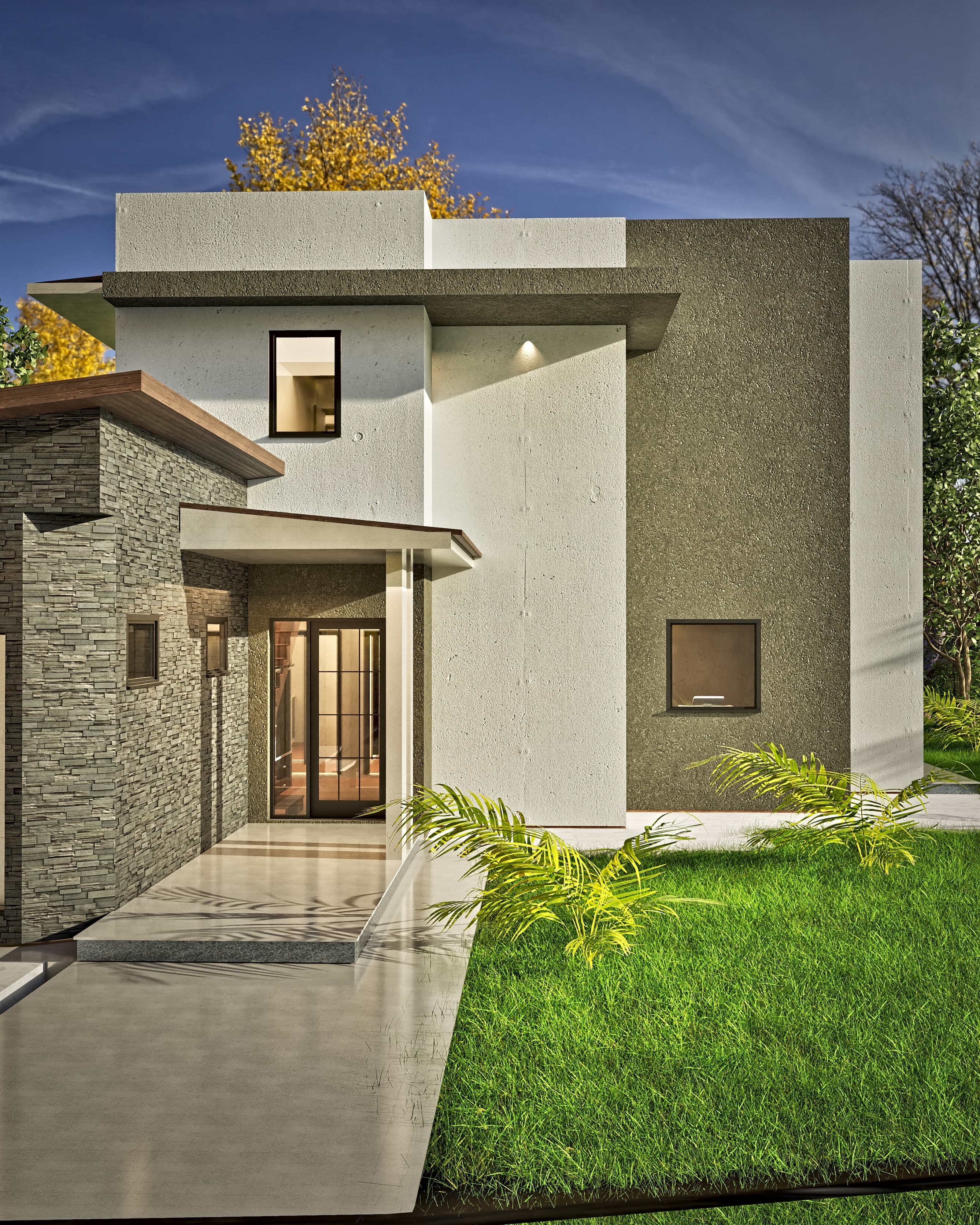

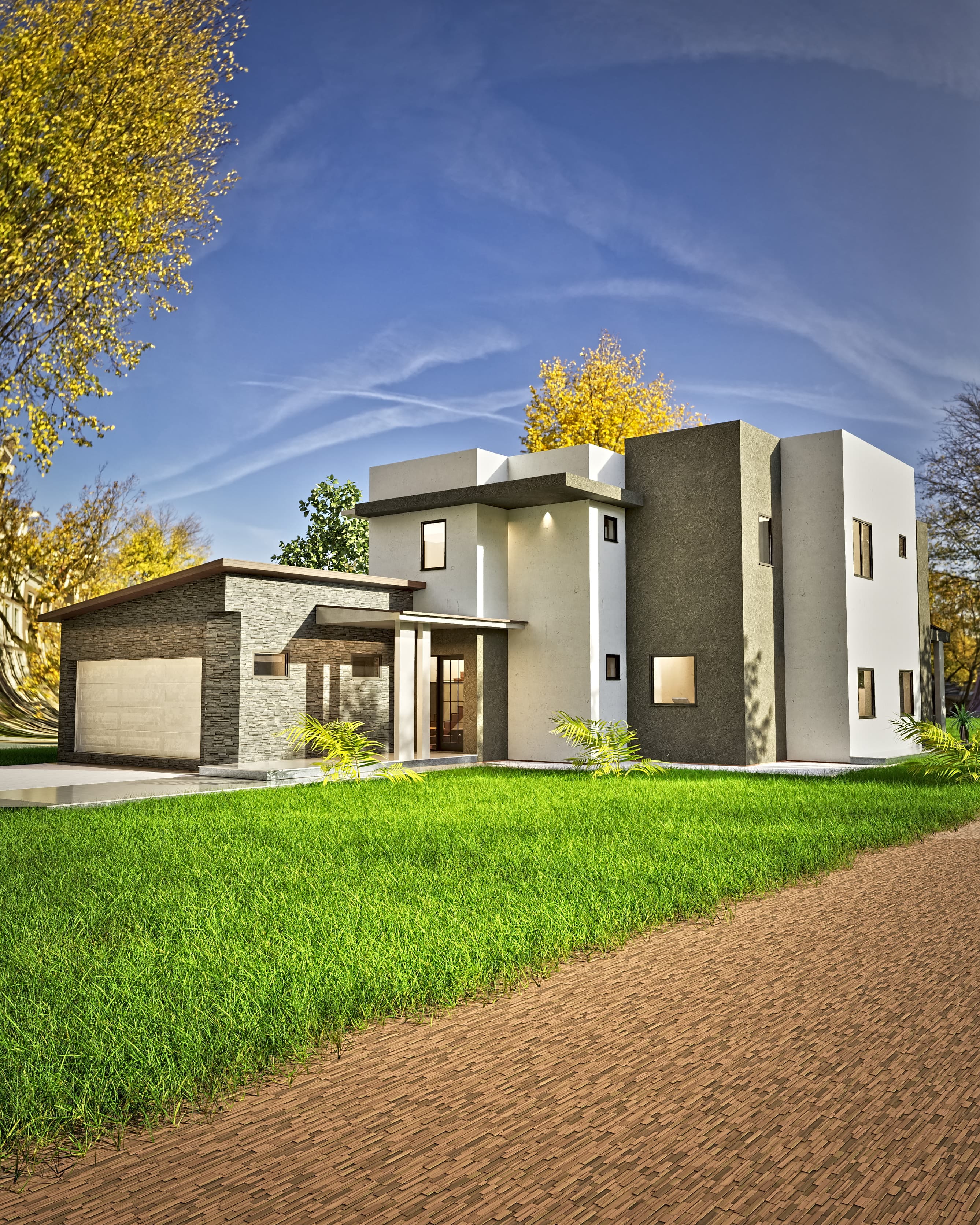

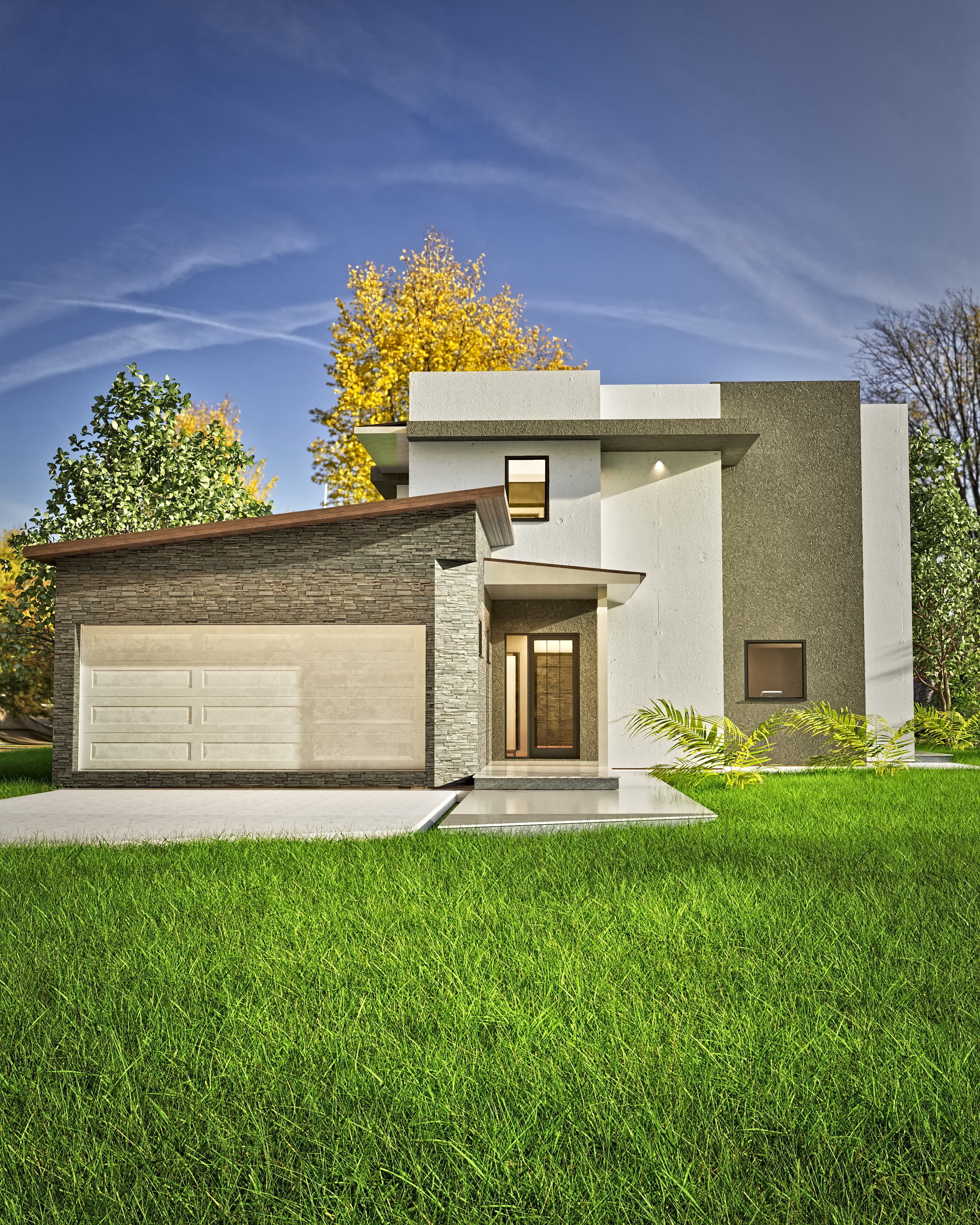

Oasis sets light against dark. The upper floor is a white box outlined by a thick dark fascia. Below it, walls of dark stacked stone anchor the house, and a covered terrace on slim columns runs along the garden side. A single-level wing holds the two-car garage and sets the composition off center.

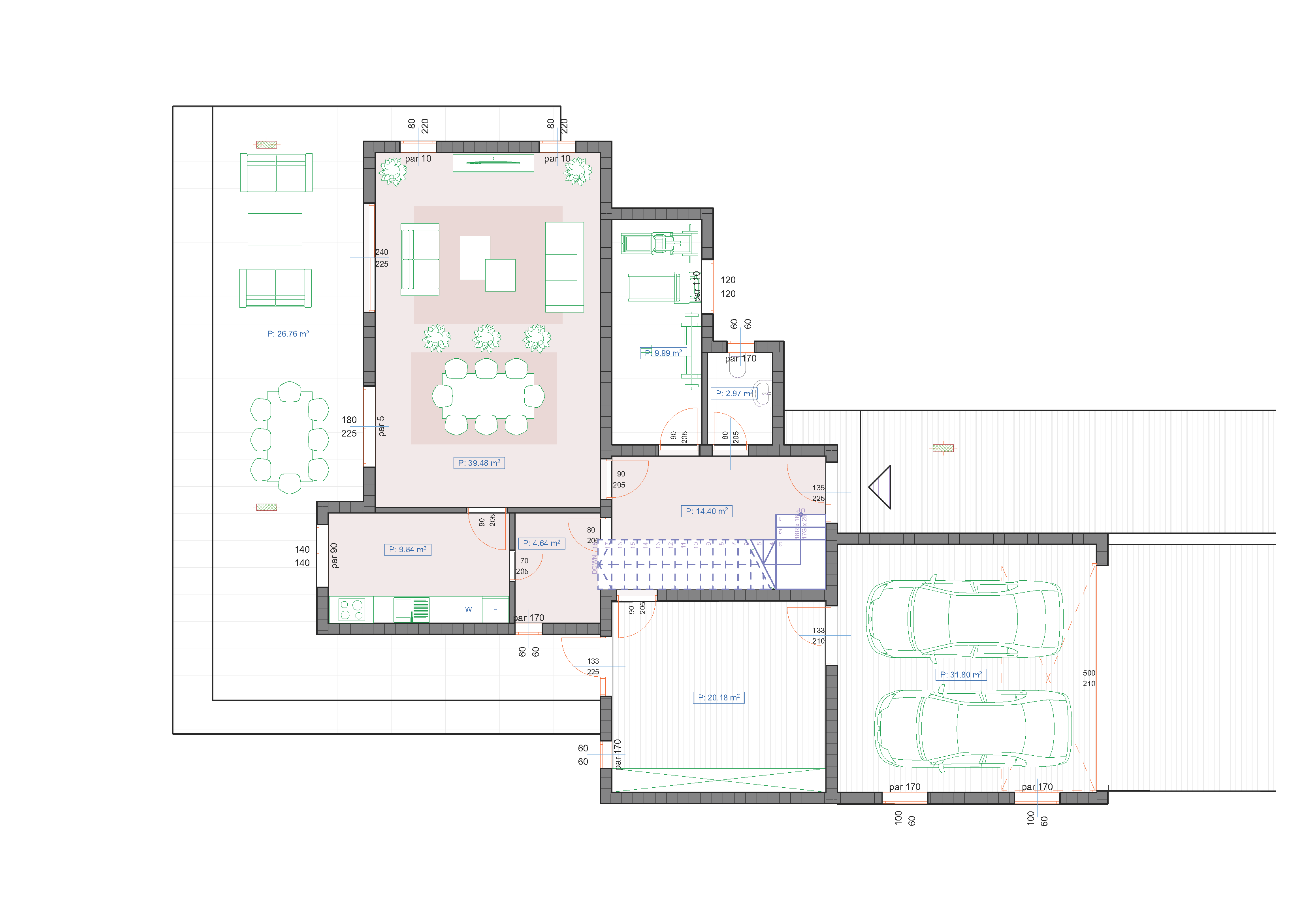

The main level is planned around daily routines. The living and dining room, 39.48 m² (425 ft²), opens along its length to the covered terrace: shade at midday, shelter when it rains. The kitchen is a separate room, with a pantry and utility space beside it, so cooking and clutter stay out of view. A flex room drawn as a home gym works just as well as a study. The storage and mechanical room, 20.18 m² (217 ft²), has its own outside door for bikes and garden tools, and the garage opens into the hall.

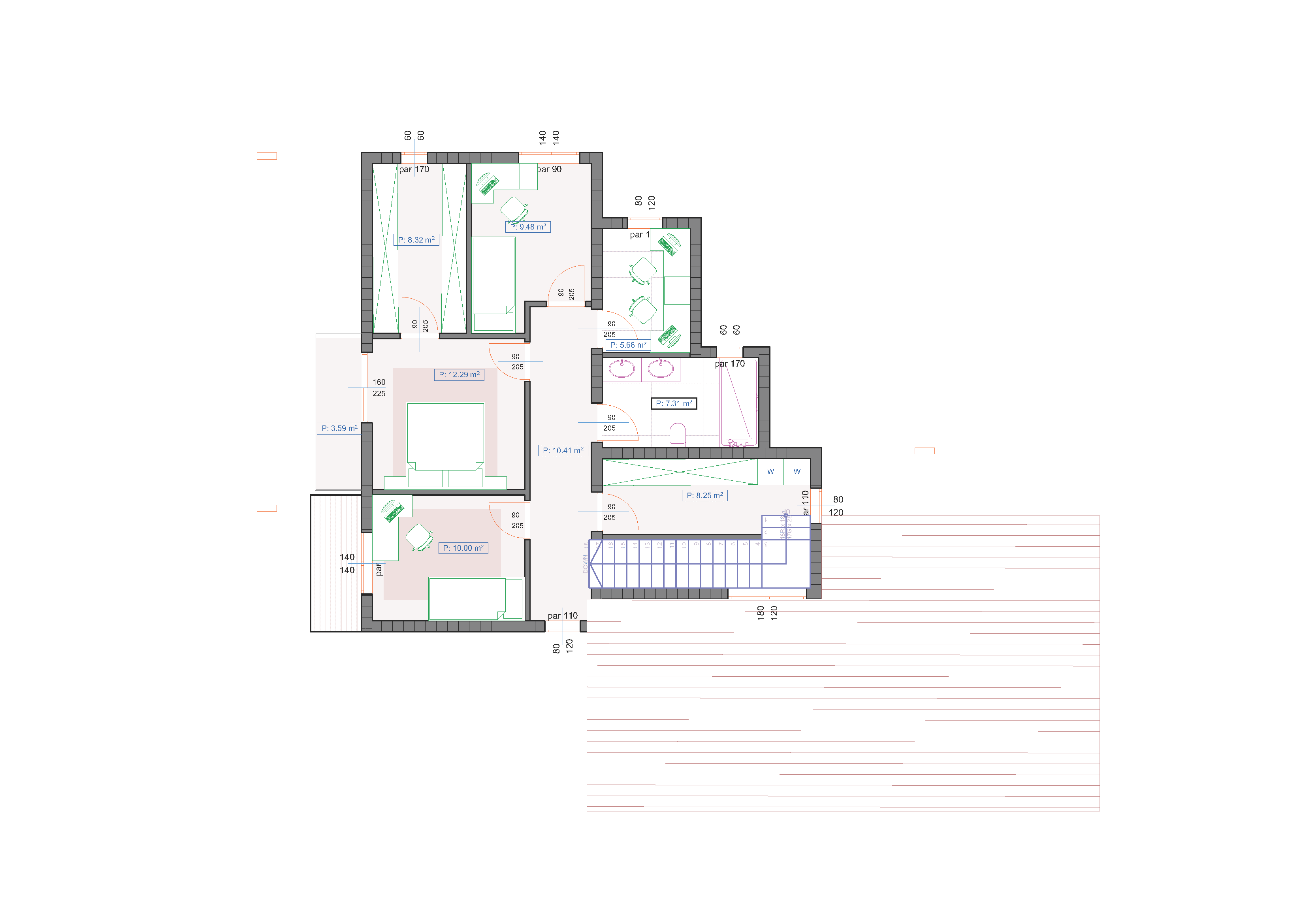

Upstairs, the principal bedroom has a walk-in closet and a small balcony behind glass. Two more bedrooms, a family bathroom, a laundry and linen room and a study sit around the landing.

A flat roof keeps the lines horizontal. For a flat-roof house with a pool drawn into the design, see Lumen.

Features

  • Two levels, 212 m² (2,282 ft²) including the two-car garage
  • Living and dining of 39.48 m² (425 ft²) opening to a 26.76 m² (288 ft²) covered terrace
  • Separate kitchen with a pantry and utility room
  • Main-level flex room drawn as a home gym, plus a half bath
  • Principal bedroom with a walk-in closet and balcony; two more bedrooms and a study
  • Storage and mechanical room with its own outside door; garage with internal access

Details

Oasis details
ParkingTwo-car garage
RoofFlat
FacadeWhite stucco; dark stacked-stone cladding; dark gray fascia panels; large sliding glazing
HeatingAir-to-water heat pump with radiant floor heating and cooling; heat-recovery ventilation

Floor plans

Select a drawing to see how the rooms connect.

Room schedule
Oasis room schedule
Roomm²ft²
Ground floor: Living and dining39.48425
Ground floor: Kitchen9.84106
Ground floor: Pantry and utility4.6450
Ground floor: Entrance hall and stair14.4155
Ground floor: Half bath2.9732
Ground floor: Home gym or study9.99108
Ground floor: Storage and mechanical room20.18217
Ground floor: Two-car garage31.8342
Ground floor: Covered terrace (outdoor)26.76288
Upper floor: Principal bedroom12.29132
Upper floor: Walk-in closet8.3290
Upper floor: Bedroom 210108
Upper floor: Bedroom 39.48102
Upper floor: Study5.6661
Upper floor: Bathroom7.3179
Upper floor: Landing10.41112
Upper floor: Laundry room with linen storage8.2589
Upper floor: Balcony (outdoor)3.5939
Total of listed spaces235.372,533

The table adds the labeled spaces on the drawings. Areas in ft² are rounded.

Before you order.

What to know about Oasis before you choose a set.

  • Will it fit your lot?

    If you have a lot in mind, share its dimensions or a map link with Jovan. He can help you see how the entrance, living spaces and garden of Oasis could fit. Still looking for land? Ask what to look for in a lot for this layout.

    Ask about your lot, free
  • What will it cost?

    Study Set $149, Complete Set $1,095, Studio Set $1,195, each a fixed price. Built in the US,its 2,282 sq ft come to about 351,000 US dollars before the lot, at the 2025 Census median of 153.65 US dollars per sq ft of finished space in new detached homes; a garage or terrace counted in that area costs less to build. Your builder prices it for your lot from the Study Set.

    Cost to build Oasis, region by region
  • What comes with the Complete Set?

    You receive dimensioned floor plans, a foundation layout, the roof plan, elevations, sections and a door and window schedule, labeled in English, as PDF and editable DWG files.

    View the Oasis layout
  • Can you change it?

    Yes. Tell us what would make the layout work better for you, whether that’s a quieter bedroom or an entrance closer to the kitchen. The Studio Set includes one round of changes, about 12 hours of design time.

    Ask for a change
  • What units are the drawings in?

    The drawings are metric and labeled in English, with every area in m² and ft². The UK, Ireland and Australia build in metric already; for the US and Canada, the DWG files switch to feet and inches in CAD.

    Building a plan from another country
  • What happens after you order?

    Nothing is charged when you order. We email your invoice in US dollars. Pay it by PayPal or bank transfer, and your drawings follow by email: PDF for the Study Set, PDF and editable DWG for the Complete and Studio Sets. For a Studio Set, we work through your changes with you before delivery.

    How ordering works

Choose your set.

Building it as drawn? Choose the Complete Set. Want changes first? The Studio Set. Still deciding? Start with the Study Set.

Compare all prices
  • PDF

    Study Set

    The full floor plans and renderings as a PDF, to check against your lot and get a builder’s price.

    $149

    Counts in full toward the same design’s Complete or Studio Set within 12 months.

    Review only

    • Design renderings and a one-page design overview
    • Metric floor plans with room names, areas and overall dimensions
    • Area table in m² and ft²
    • Elevations, a section and a roof plan where available for the design
  • Recommended · PDF + DWG

    Complete Set

    The set to build from: PDF drawings and editable DWG files, ready for your builder.

    $1,095

    Build one home

    • Everything in the Study Set, plus dimensioned plans, foundation layout, roof plan, elevations and sections
    • Door and window schedule; wall, floor and roof layers
    • Drawings labeled in English, with an area schedule and general notes
    • Metric PDF and editable DWG files to build one home
  • PDF + DWG

    Studio Set

    The Complete Set, plus one round of changes by our studio and up to 6 hours of Q&A over 12 months.

    $1,195

    $100 more than the Complete Set, for one round of changes and up to 6 hours of Q&A

    Build one home

    • Everything in the Complete Set
    • One round of changes by CAD ART studio before delivery: layout, openings and finishes (about 12 hours of design time)
    • Q&A with your architect or builder by email or video, up to 6 hours over 12 months
    • Reversed (mirror-image) plan on request

Not sure yet? Start with the Study Set. If you upgrade within 12 months, you pay only the difference: $946 for the Complete Set of Oasis, or $1,046 for the Studio Set.

Add-ons for Oasis: reversed (mirror-image) plan $49 (included in the Studio Set) · additional build license $149 · developer license (free fixed quote)

Jovan Milivojević, our lead designer, answers every request personally. Dijana Radusin, our technical coordinator, checks every set before it leaves the studio. Meet the team

Bigger changes in mind?

What would you like to keep about Oasis? Tell Jovan what you would change, and he can help you explore the options.

Designed by CAD ART studio

An architecture studio in Paraćin, Serbia.

A team with 33+ years of experience and more than 500 projects across Serbia, from family homes and villas to apartment buildings of up to 50,000 m² (about 538,000 ft²).

  • 500+Projects across Serbia
  • 33+Years of experience in the team
  • 15+Buildings built to the team’s designs

Questions about Oasis

How many bedrooms and bathrooms does Oasis have?

The drawn plans show three bedrooms, a study, one family bathroom and a half bath. The flex room on the main level is drawn as a home gym and also works as a study.

What is on each level?

The main level has the entrance hall and stair, living and dining, the kitchen with its pantry, a half bath, the flex room, a storage room and the garage. Upstairs are three bedrooms, a walk-in closet, the family bathroom, a laundry and linen room and the study.

Does the floor area include the garage?

Yes. The 212 m² (2,282 ft²) total includes the 31.80 m² (342 ft²) garage.

What kind of lot was Oasis designed for?

It was conceived for an urban lot. The Study Set gives its overall dimensions. You can also send us any lot details or photos, and we can help you explore how the design could fit.

How is Oasis heated and cooled?

Oasis is designed with an air-to-water heat pump supplying radiant floor heating and cooling, plus heat-recovery ventilation.

Are the drawings metric?

Yes. The drawings are metric, and every area on this page is also given in ft². Complete and Studio Sets add editable DWG files.

Can I change the facade or the layout?

Yes. The Studio Set covers one round of changes to finishes, openings and rooms before delivery (about 12 hours of design time). Larger layout changes get a free quote.

Can Oasis be mirrored?

Yes. A mirror-image plan is included with the Studio Set on request, and is available as an add-on with the other sets.
